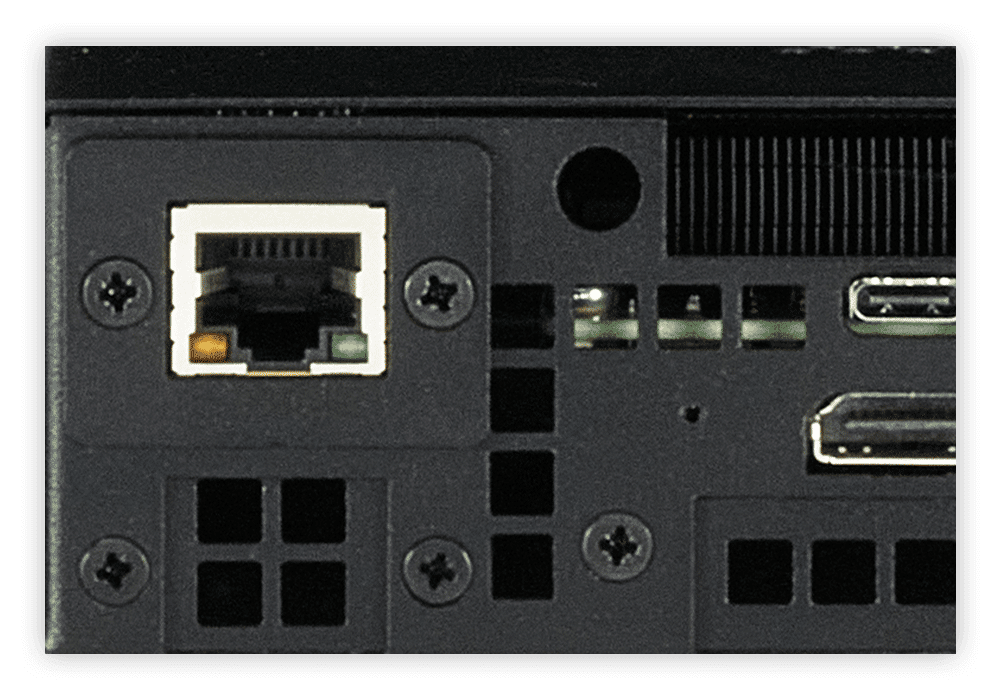

1U NUC C14
Back in 2015, we set out to create the very first rack-mount-ready Intel NUC. Our goal? To take the compact power of the Intel NUC and adapt it perfectly for rack cabinets.
We nailed it by designing an enclosure that could fit three Intel NUCs in just 1U space—maximizing density without sacrificing performance. We also included an internal AC/DC power supply, so you don’t need to juggle bulky desktop power adapters during installation.
And let’s not forget about flexibility. With three Ethernet ports, Power-over-Ethernet support, and an RS232 port, we built in plenty of expansion options to meet your needs.
It’s all about combining simplicity, performance, and smart design.
Case Specification
- Size (WxDxH): 146x200x44.4mm
- Weight: 3.5 KG
- Hot Swap HDD Bay: Not available with this case
- Power Supply: 110-230VAC, 12V-20VDC or PoE++
- PCIE Slots: Not available with this case
- Front USB: 1x USB3.0
Total Price
£660.45 EX. VAT
Estimated lead time 5 working days
Configure
* Return to Base warranty with Telephone support during normal business hours.
*1 Next Business Day Response. A fault must be diagnosed and replacement parts available before an engineer can attend site. Specific terms & conditions apply as set out in our Warranty Service Contract.
Missing Something?
We can’t list all of the possible options here, so if you want something not shown in the configurator then click Add Requirements and fill out the contact form. We’ll get in touch the same business day to discuss it.
Missing Something?
We can’t list all options here, so please send us your requirements.
Custom Quote
Spec PDF
Share
Request a Call Back
Request Custom Quote
Specifications
RAID: Not available with this case
DVD: No DVD drive bay
GFX Output: Integrated / On-board with 2x HDMI Output(s)
GFX Card: None
LAN: Intel i225 (2.5Gb/s)
WLAN: Built in Wifi AX211D2W
USB Ports Rear: 1x USB2.0, 1x USB3.2 Gen2
Serial Ports: Not available on this model
PSU: 120W 100-240VAC 60-50Hz
Thunderbolt: 2x Gen4 Ports
Motherboard I/O Ports:
Options
Power over Ethernet support
Ideal for installations in challenging environments, Power over Ethernet (PoE) streamlines the rackmount process by enabling both data and power to be fed through a single cable. Enjoy reliable connectivity, a decluttered comms cabinet, and the freedom of PoE++.
Up to 3 Intel NUCs Mounted in 1U
It’s often the case that rack mounting a PC proves too complex or is undesirable for an installation – that’s where our mini PCs thrive. Fully wall mountable and neatly contained, they offer a simple, streamlined alternative to rack mounting for environments short on space.
Multiple Ethernet ports
Maximise Ethernet output with multiple ports in our mini PCs. Providing critical network failover, redundancy, and improved throughput, this dual Ethernet option is essential for systems reliant on high availability.
FAQs
If you have a specific question please contact us on 0333 880 4242.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
