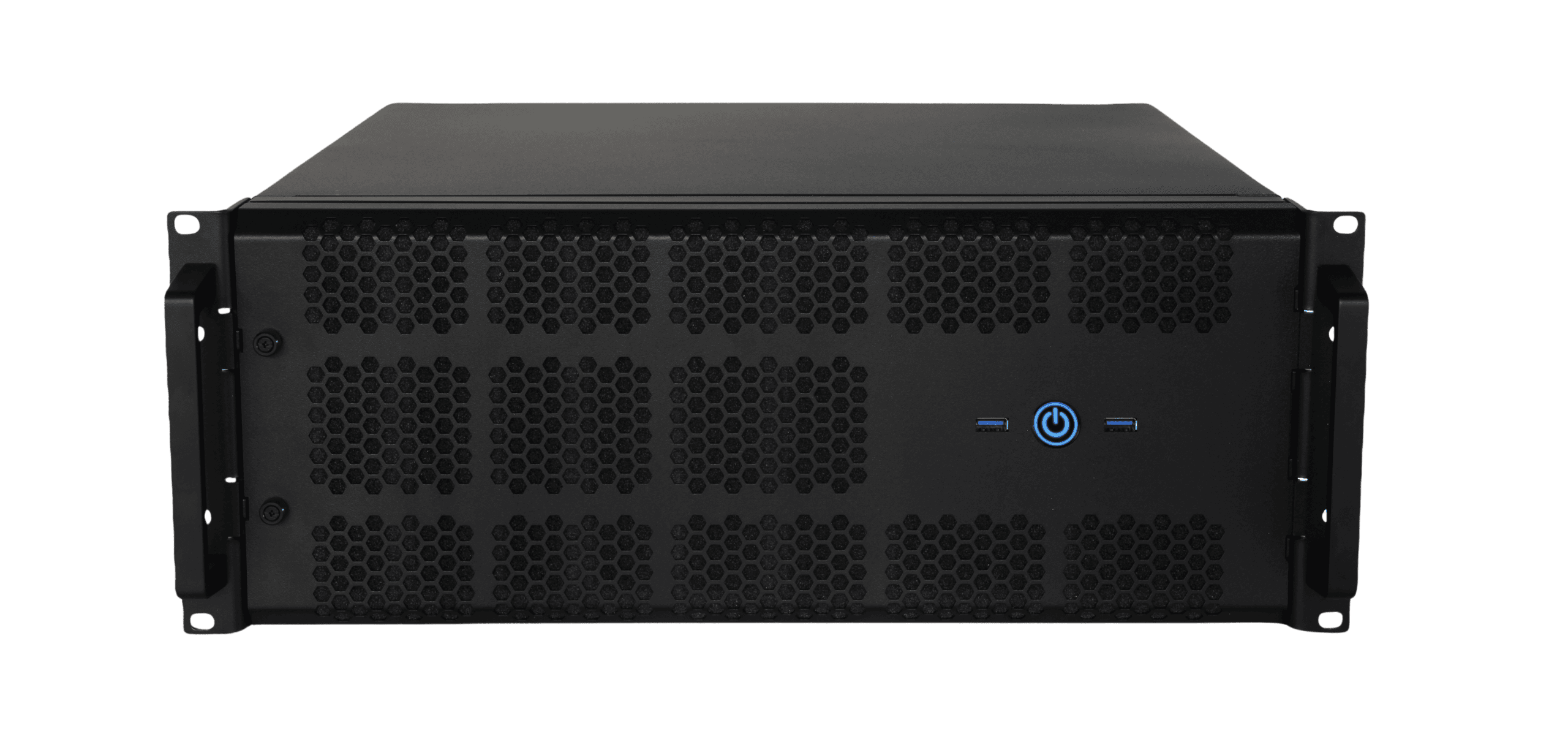

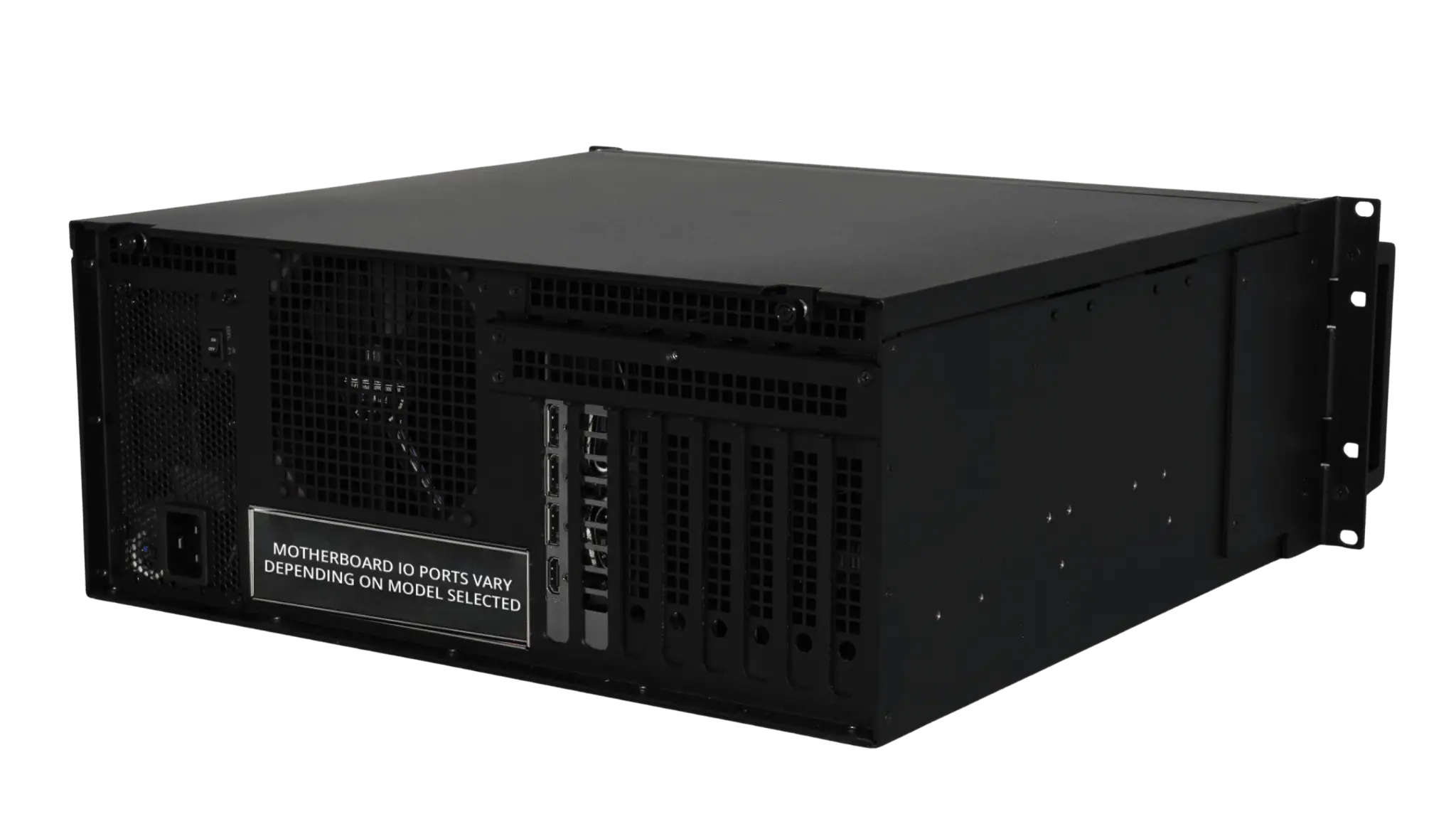

4U Nano
Level up your workflow with the powerhouse that is the 4U Nano. Built to offer unparalleled expansion for compute and graphics-intensive applications, this machine is the ultimate choice for professionals who demand performance in a short dept case. With support for up to 16x 2.5″ hot-swap HDD bays, 7x PCIe x16 slots, and 8x NVMe/U.3 drives, the 4U Nano lets you harness next-level storage and speed for your most ambitious projects.
What sets it apart? Its compact yet efficient design—measuring 425x370x177mm —packs all this capability into a streamlined chassis. Its redundant power supply options ensure rock-solid reliability, even under the heaviest workloads.
Case Specification
- Size (WxDxH): 425x370x177mm
- Weight: 19 KG
- Hot Swap HDD Bay: Up to 16x 2.5", 4x 3.5" or 8x NVMe/U.3
- Power Supply: Single/Redundant <2KW 110-230VAC
- PCIE Slots: Up to 7x PCIe x16 (x16 Lanes)
- Front USB: 2x USB3.0
FAQs
If you have a specific question please contact us on 0333 880 4242.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
