2U Nano C14

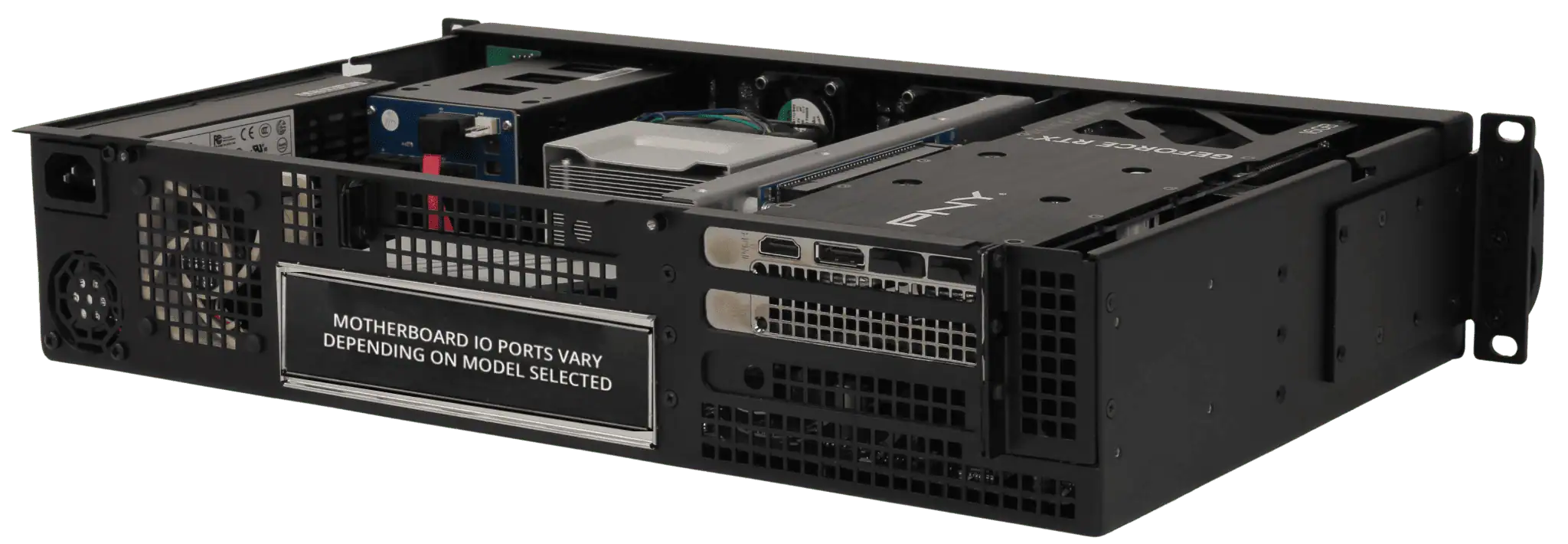

The 2U Nano is back, now redesigned and loaded with cutting-edge features to elevate your workspace. Specifically crafted for environments where space is at a premium, this ultra-short depth 2U computer measures just 438mm in depth and weighs a mere 9 kg, offering power and performance without bulk.
Featuring up to 4 hot-swappable 2.5″ or 2 NVMe/U.3 drive bays, it provides flexible and efficient storage solutions that keep you running at full speed. Powered by a versatile single <600W power supply, the 2U Nano ensures reliable performance while adapting to your power needs seamlessly.
The system boasts up to 3 PCIe x16 slots, making it ideal for enterprises demanding high-speed processing, advanced graphics, or enhanced networking capabilities. Additionally, with 2 front-facing USB 3.0 ports, accessing your external devices is effortless and convenient.
Case Specification
- Size (WxDxH): 438x280x88.8mm
- Weight: 9 KG
- Hot Swap HDD Bay: Up to 4x 2.5" or 2x NVMe/U.2
- Power Supply: Single <600W 110-230VAC
- PCIE Slots: Up to 3x PCIe x16
- Front USB: 2x USB3.0
Total Price
£1,194.49 EX. VAT
Estimated lead time 5 working days
Configure
* Return to Base warranty with Telephone support during normal business hours.
*1 Next Business Day Response. A fault must be diagnosed and replacement parts available before an engineer can attend site. Specific terms & conditions apply as set out in our Warranty Service Contract.
Missing Something?
We can’t list all of the possible options here, so if you want something not shown in the configurator then click Add Requirements and fill out the contact form. We’ll get in touch the same business day to discuss it.
Missing Something?
We can’t list all options here, so please send us your requirements.
Custom Quote
Spec PDF
Share
Request a Call Back
Request Custom Quote
Specifications
RAID: RAID 0, 1, 5, 10
DVD: No DVD drive bay
GFX Output: Intel UHD 730 with HDMI & DisplayPort Output(s)
GFX Card: Not Quoted - Options Available
LAN: Realtek 2.5Gb LAN (2.5Gb/s)
WLAN: Not Quoted - Internal Wi-FI & BT Option
USB Ports Rear: 2x USB2.0, 3x USB3.2, 2x USB3.2 Gen2, 1x USB-C Gen3
Serial Ports: 1 Optional Ports Available
Expansion Slot 1: PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0)
Expansion Slot 2: Empty Slot - Call us for options
Expansion Slot 3: Upgrade Available - (x4 Lanes, Gen 4.0)
PSU: 600W 100-240VAC 60-50Hz
Thunderbolt: Not Available on this Product
Audio Ports: 3x 3.5mm Ports (Stereo Out, Mic In, Line In)
Motherboard I/O Ports:
Options
NVMe U.3/M.2 PCIe or 2.5" hot-swappable drive bays
Whatever your preference of NVMe connector, we’ve got a hot-swappable drive bay option to suit. Harness the impressive data transfer speed of M.2 or enjoy the convenience, capacity, and heat control of U.3. Alternatively, SATA and SAS make it easy to swap out HDD or SSD drives while the unit is still running, minimising downtime.
Dual-width graphics card support
Digital workloads are becoming more graphics-intensive by the day, making GPU capability critical. With dual-width graphics cards increasingly common in demanding AV installations, we enable maximum performance in the smallest PC footprint.
FAQs
Which GPUS will fit in the 2U Nano?
The 2U Nano can support the 4070 Blower type for consumer cards.
For professional cards even the RTX 6000 ADA can be fitted.
View Support Portal
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
