Replaceable Dust Filter
Optional Fixed Rear Support Kit
Optional Reverse Mounting Kit

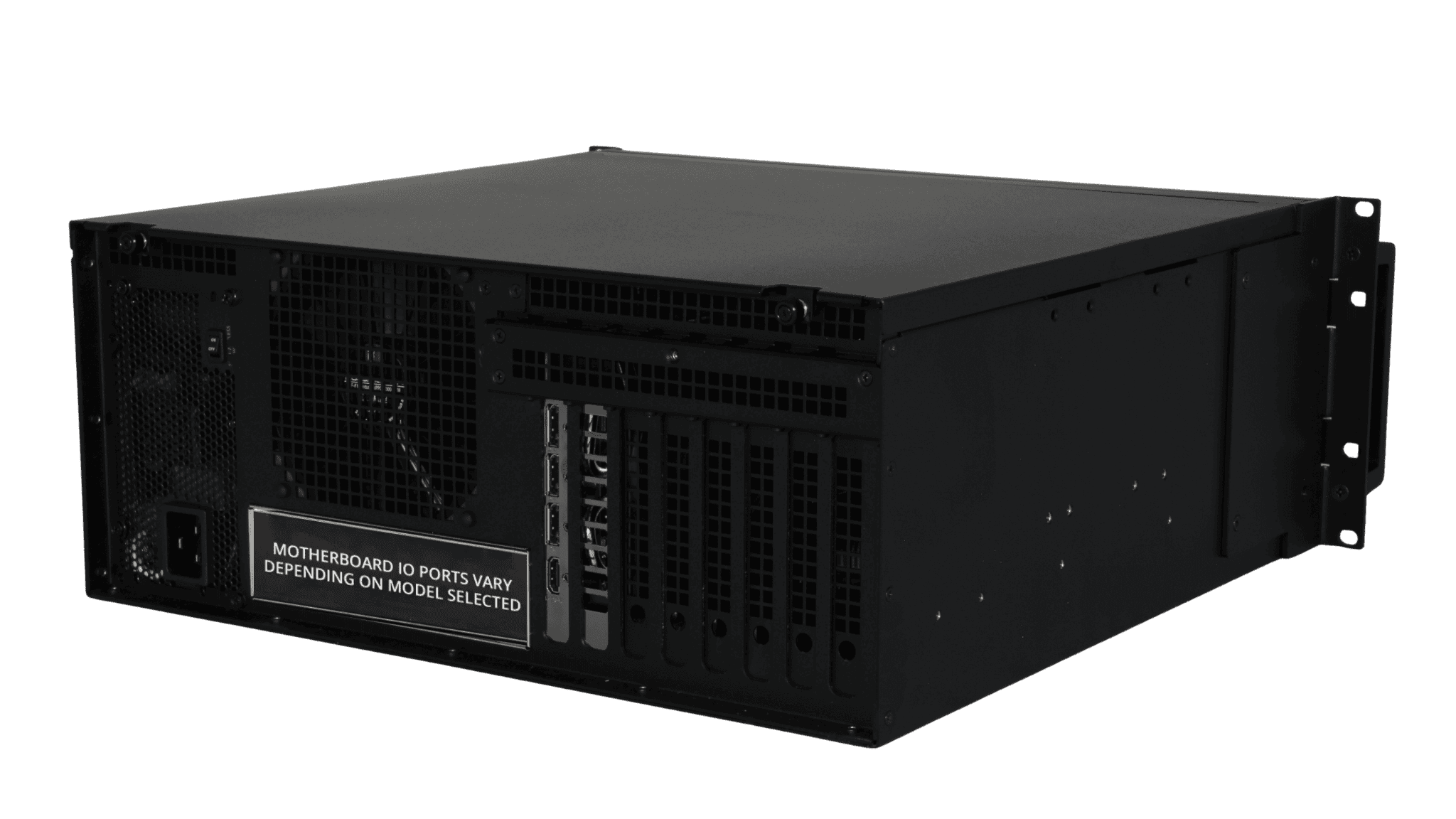

4U Nano W14
Level up your workflow with the powerhouse that is the 4U Nano. Built to offer unparalleled expansion for compute and graphics-intensive applications, this machine is the ultimate choice for professionals who demand performance in a short dept case. With support for up to 16x 2.5″ hot-swap HDD bays, 7x PCIe x16 slots, and 8x NVMe/U.3 drives, the 4U Nano lets you harness next-level storage and speed for your most ambitious projects.
What sets it apart? Its compact yet efficient design—measuring 425x370x177mm —packs all this capability into a streamlined chassis. Its redundant power supply options ensure rock-solid reliability, even under the heaviest workloads.
Case Specification
- Size (WxDxH): 430x425x177mm
- Weight: 19 KG
- Hot Swap HDD Bay: Up to 16x 2.5" or 8x NVMe/U.3
- Power Supply: Single/Redundant <2KW 110-230VAC
- PCIE Slots: Up to 7x PCIe x16 (x16 Lanes)
- Front USB: 2x USB3.0
This product is now discontinued.
View alternative products.
Total Price
£2,479.44 EX. VAT
Estimated lead time
7 working days
Configure
* Return to Base warranty with Telephone support during normal business hours.
*1 Next Business Day Response. A fault must be diagnosed and replacement parts available before an engineer can attend site. Specific terms & conditions apply as set out in our Warranty Service Contract.
Can't Configure What You Need?
We can’t list all of the possible options, if you want something not shown in the configurator then click Custom Quote button. We’ll get in touch the same business day to discuss it.
Can't Configure What You Need?
We have so many options, click the Custom Quote button and send us your requirements.
Custom Quote
Spec PDF
Share
Request a Call Back
Rental Quote
Request Custom Quote
Specifications
RAID: RAID 0, 1, 5 (NVMe/SATA) RAID10 (SATA)
DVD: No DVD drive bay
GFX Output: Intel UHD 770 with HDMI Output(s)
GFX Card: Not Quoted - Options Available
LAN: Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s)
WLAN: 802.11ax Wi-Fi 6E Module
USB Ports Rear: 6x USB3.2 Gen2
Serial Ports: 1 Optional Ports Available
Expansion Slot 1: PCIe x16 (Full Height) (x16/x8 Lanes, Gen 5.0)
Expansion Slot 2: Empty Slot - Call us for options
Expansion Slot 3: Empty Slot - Call us for options
Expansion Slot 4: PCIe x16 (Full Height) (x8 Lanes, Gen 5.0)
Expansion Slot 5: Empty Slot - Call us for options
Expansion Slot 6: PCIe x16 (Full Height) (x4 Lanes, Gen 4.0)
PSU: HPT2-1200M
Thunderbolt: 2x Gen4 Ports
Audio Ports: 5x 3.5mm Ports
Motherboard I/O Ports:
FAQs
If you have a specific question please contact us on 0333 880 4242.
Rack Rail Installation Guide
Please see the attached PDF for Rack Rail installation instructions
Custom Serial Stickers
If you'd rather your units carried your own name than G2's, we produce a custom sticker in place of our standard
label. It carries your logo, your company name and address, your own product and model naming, and a
QR code, alongside the compliance marks. Please see the PDF guide for full details.
